NORIS hand and machine taps

133 tap variants in 25 thread types form our standard portfolio in the field of taps. Choose your machining scenario and discover our common, diverse possibilities.

Through hole tap:

NORIS STABIL: For through hole threads up to 4 x D

NORIS-STABIL machine tap for through hole threads up to 4 x D. Due to the special geometry of the STABIL- flutes, the chips are effectively evacuated ahead of the tap avoiding the possibility of chip-packing.

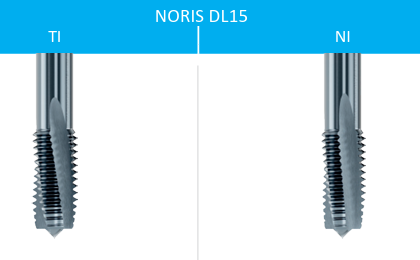

NORIS DL15: For through hole threads up to 4 x D

NORIS-STABIL machine tap for through hole threads up to 4 x D. Due to the special geometry of the STABIL- flutes, the chips are effectively evacuated ahead of the tap avoiding the possibility of chip-packing.

NORIS trapezoidal single cut taps: For through hole threads up to 2 x D

NORIS-trapezoidal single cut taps for through hole up to 2 x D. Through the good chip breaking the trapezoidal thread can completed in one cut. The resulting chip volume is removed in the cutting direction.

Through hole / blind hole tap

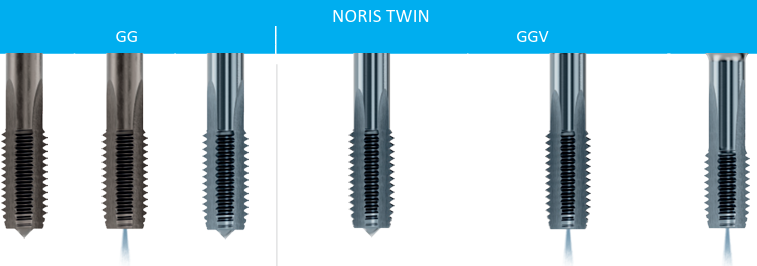

NORIS TWIN: For blind and through hole threads up to approximately 2 x D

NORIS-TWIN machine tap with straight flutes for blind and through hole threads up to approximately 2 x D. Preferred use in short chipping materials. The tool is available with or without internal coolant supply.

NORIS INNENSPAN:  For blind and through hole threads up to approximately 1,5 x D

NORIS INNENSPAN machine tap for blind and through hole threads up to approximately 1,5 x D. The special designed head collects all chips in the hollow interior. This and the secure self-guiding, due to the unfluted guiding-part, results in a high process reliablility.

NORIS Set of taps: For blind and through hole threads up to approximately 2 x D

NORIS Set of taps with straight flutes for blind and through hole threads up to approximately 2 x D.

Blind hole tap

NORIS SL: For blind hole threads up to approximately 2 x D

NORIS SL machine taps with a 15°/25°/30° right-hand spiral flutes for blind hole threads up to approximately 2 x D. This type produces excellent results in difficult cutting conditions, particularly threads with cross holes. With the chip evacuation against the cutting direction, a secure tapping operation is assured. The tool is available with or without internal coolant supply.

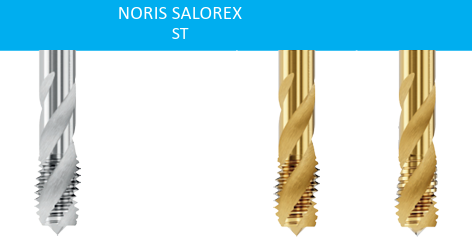

NORIS SALOREX: For blind hole threads up to approximately 3 x D

NORIS-SALOREX machine tap for blind hole threads up to approximately 3 x D thread depth. Due to the high spiral helical flutes the chip evacuation against the cutting direction is assured, even for deep threads. The tool is available with and without internal coolant supply.
